How to style features by quantity

Colour points, lines, or polygons by a number, such as population or road length. Use classes or a smooth gradient, with a legend that names each class.

Pick a numeric field in the layer’s colour driver, and each point, line, or polygon gets a colour from its value, with the legend naming each class. Changing the field, the class count, or the method rebuilds the classes, so finish those choices before you customise the rows.

See it on an example map

Open the World Atlas. Countries — Population is on when the map opens. It colours each country by its population class. The legend shows the start value of each class.

See it on points

Open the World Point Styling Lab. The Classes and Gradients folder shows Continuous, three Head/Tails classes with the ramp reversed, and round class breaks with a horizontal legend.

Before you start

  • The layer must have at least one numeric attribute. If every attribute is text, see How to style features by category instead.
  • You need edit access to the map.
  • On a point layer, set Marker type to Circle or Icon. Custom Icon and Heatmap markers have no field colour.
  • Decide which numeric field drives the colour, such as population for countries, length for roads, or height for buildings. Switching the field rebuilds the breaks from scratch.
  • Is the number a code, such as a zone number or a year? Then you want one colour per value. See How to style features by category.

The steps are the same for points, lines, and polygons. Some control names, and what each class break can change, depend on the geometry:

Point Line Polygon
Colour driver Colour markers by Colour lines by Fill polygons by
No-field option Single colour Uniform colour Uniform colour
Palette dropdown Colour palette Colour scheme Colour scheme
Head/tail method name Head/Tails Head/Tail Breaks Head/Tail Breaks
Each class break can set Colour and transparency (or opacity for a custom icon), marker type, outline (Circle), marker size, icon rotation (Icon) Colour and transparency, line pattern Fill colour and transparency, fill pattern
Same for the whole layer Size from a second numeric field, if you set one Line width, casing, cap, and join Outline: Stroke (None, Solid, Dashed, or Dotted), stroke colour, and stroke width

On a point layer, size does not come from the colour field. Leave it uniform, or size markers by a second numeric field to pair a colour ramp with proportional sizes. The legend then pairs the colour breaks with a size key. See How to size points by a number. Line width by a field is not available.

Open the Style tab

In the layer panel, select your layer. Click the Style tab.

Pick the numeric field in the colour driver

Open the colour driver. The table above gives its name for each geometry. The list starts with the no-field option, then shows every field on the dataset. Pick the numeric field whose values drive the colour. The panel shows the colour-by-number controls.

Choose how to split the values in Style as

The Style as dropdown sets how the numbers become colours:

  • Continuous: every value maps to a point on the colour ramp, and the legend shows a smooth gradient. Use it for fine variation across many values.
  • Categories: one colour per distinct value, for numbers that are codes. See How to style features by category.
  • 3 classes through 9 classes: discrete classes. Every feature draws in the colour of its class, and the legend shows one swatch per class.

A numeric field starts at 5 classes. Use more classes for finer detail and fewer for overview maps.

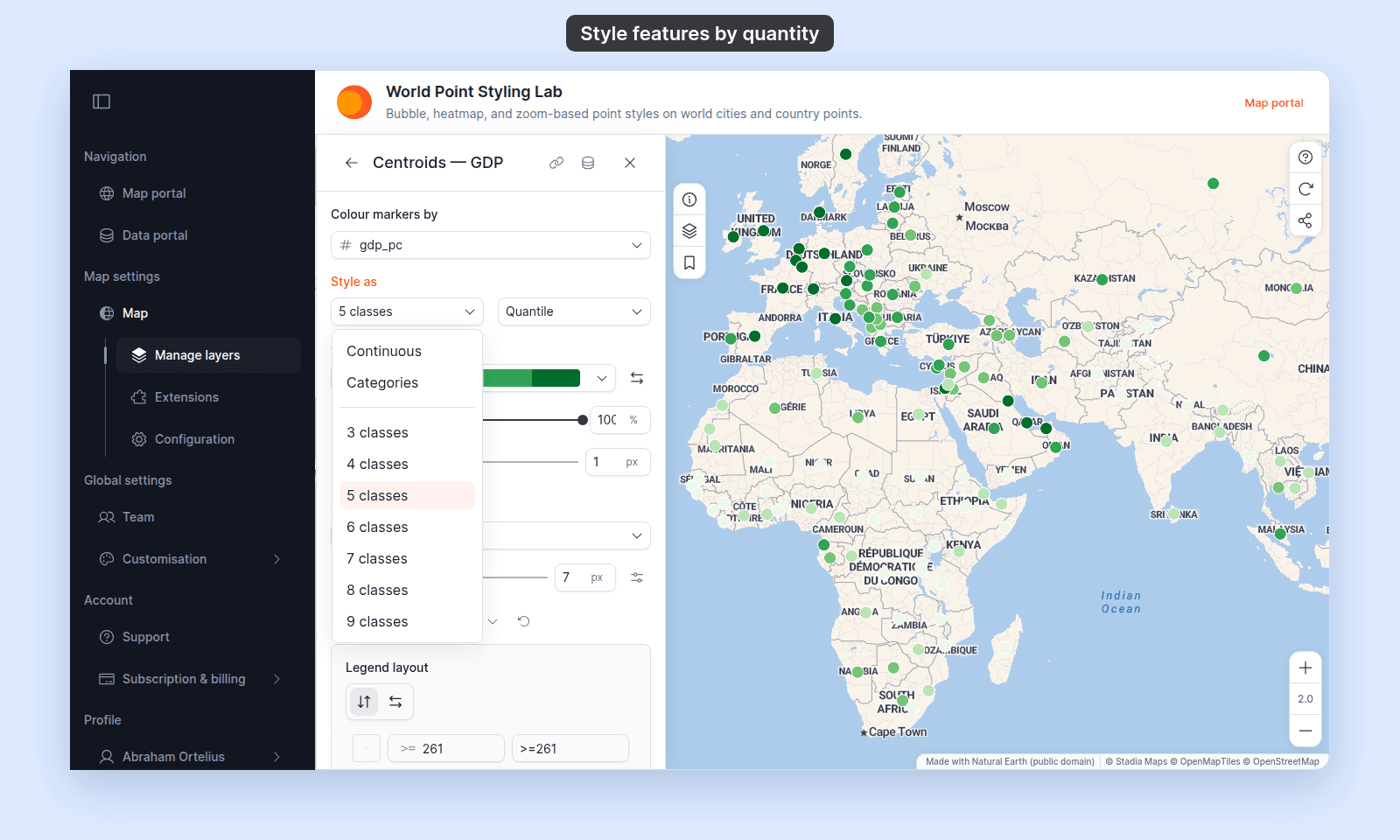

Style section of the Centroids — GDP point layer, Colour markers by set to gdp_pc, with the Style as dropdown open: Continuous, Categories, and 3 classes to 9 classes, 5 classes selected

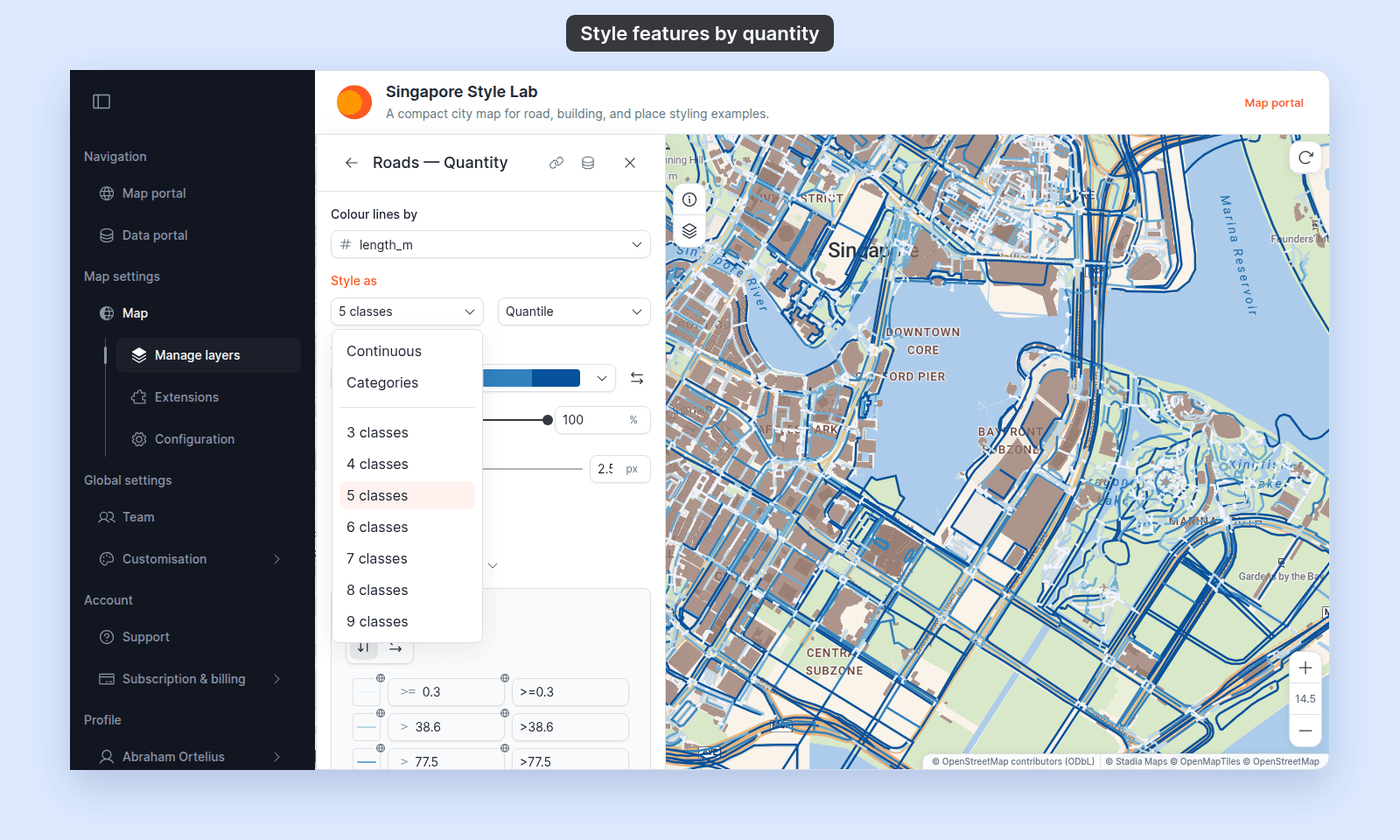

Style section of the Roads — Quantity line layer, Colour lines by set to length_m, with the Style as dropdown open: Continuous, Categories, and 3 classes to 9 classes, 5 classes selected
Style section of the Countries — Population layer, Fill polygons by set to pop_est, with the Style as dropdown open: Continuous, Categories, and 3 classes to 9 classes, 5 classes selected

With Continuous, the class count and classification method go away. A Colour scheme picker and a gradient take their place:

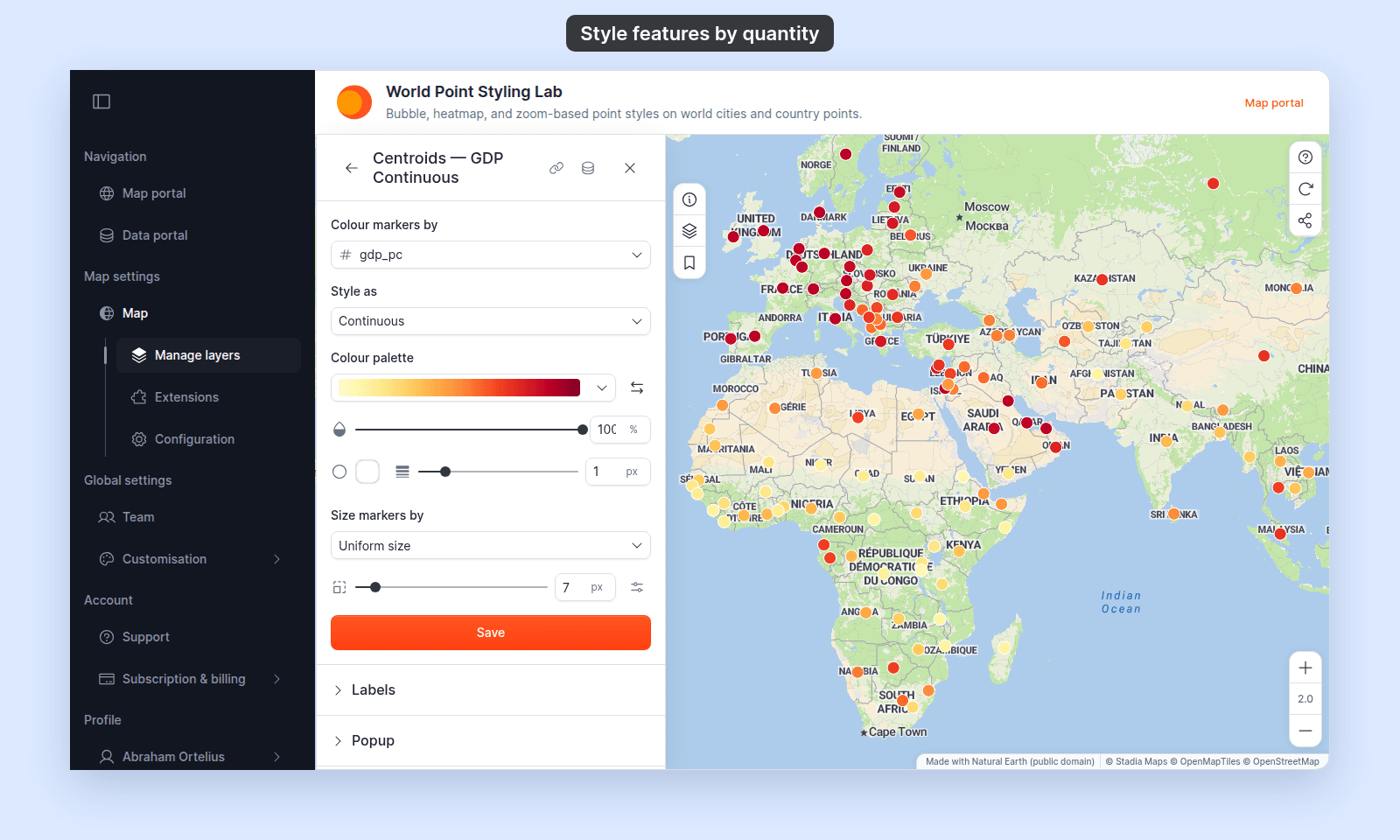

Style section of the Centroids — GDP Continuous point layer with Colour markers by set to gdp_pc, Style as set to Continuous, a Colour scheme dropdown showing a yellow-to-red gradient with the Reverse colour ramp button, and no classification method or class break rows

(Discrete only) Pick a classification method

When you pick a class count (not Continuous), a method dropdown appears with four options:

  • Equal Interval: equal-width classes across the data range.
  • Quantile: each class holds about the same number of distinct values.
  • Natural Breaks (Jenks): break points fall at gaps in the distribution. This is the default.
  • Head/Tails: classes that widen step by step, in exactly the class count you chose. Line and polygon layers call it Head/Tail Breaks.

The choice changes which features fall into which class. See Choosing a classification method for choropleth maps to pick one, and Classification methods for by-quantity styling for what each method does.

Style section of the Centroids — GDP point layer with the method dropdown open beside 5 classes: Equal Interval, Quantile, Natural Breaks (Jenks), and Head/Tails, Quantile selected
Style section of the Roads — Quantity line layer with the method dropdown open beside 5 classes: Equal Interval, Quantile, Natural Breaks (Jenks), and Head/Tail Breaks, Quantile selected

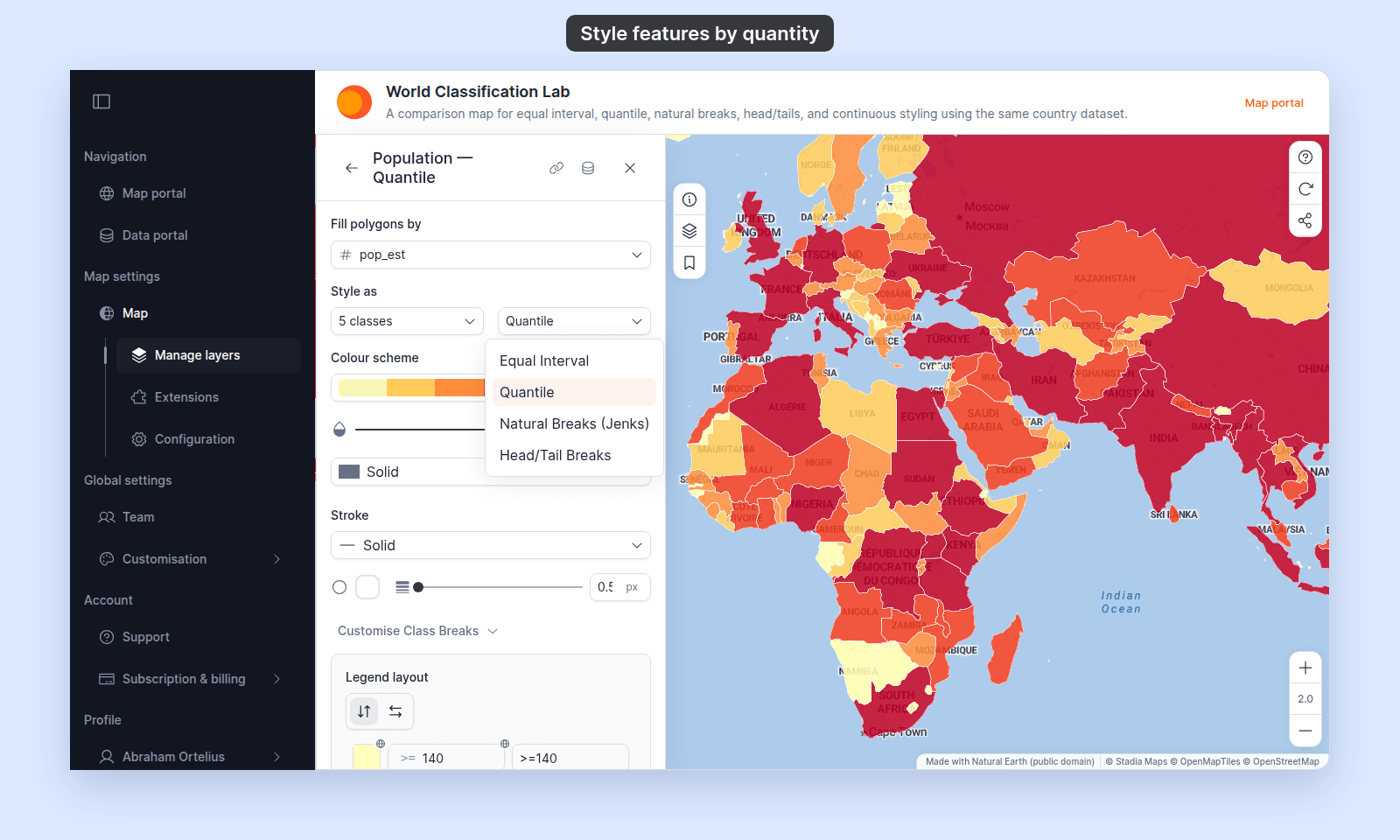

Style section of the Population — Quantile polygon layer with the method dropdown open beside 5 classes: Equal Interval, Quantile, Natural Breaks (Jenks), and Head/Tail Breaks, Quantile selected

Pick a colour palette

Open the palette dropdown. The table above gives its name for each geometry. The preview shows the gradient across the classes.

If the ramp runs the wrong way for your data (low values dark, high values light, or the reverse), click the Reverse colour ramp button (arrows pointing left and right) next to the palette dropdown. See Troubleshooting: my colour ramp is the wrong way round.

(Optional) Customise class break colours, values, and labels

Expand Customise Class Breaks below the palette controls. Each class has a row:

  • Swatch: click it to change how this class looks. The table at the top of this page lists the settings for each geometry.
  • Value: the lower bound of the class. Type a round number to replace a value such as 17.342.
  • Label: the text the legend shows.

Set the values before the labels. Changing a value resets that row’s label to the default.

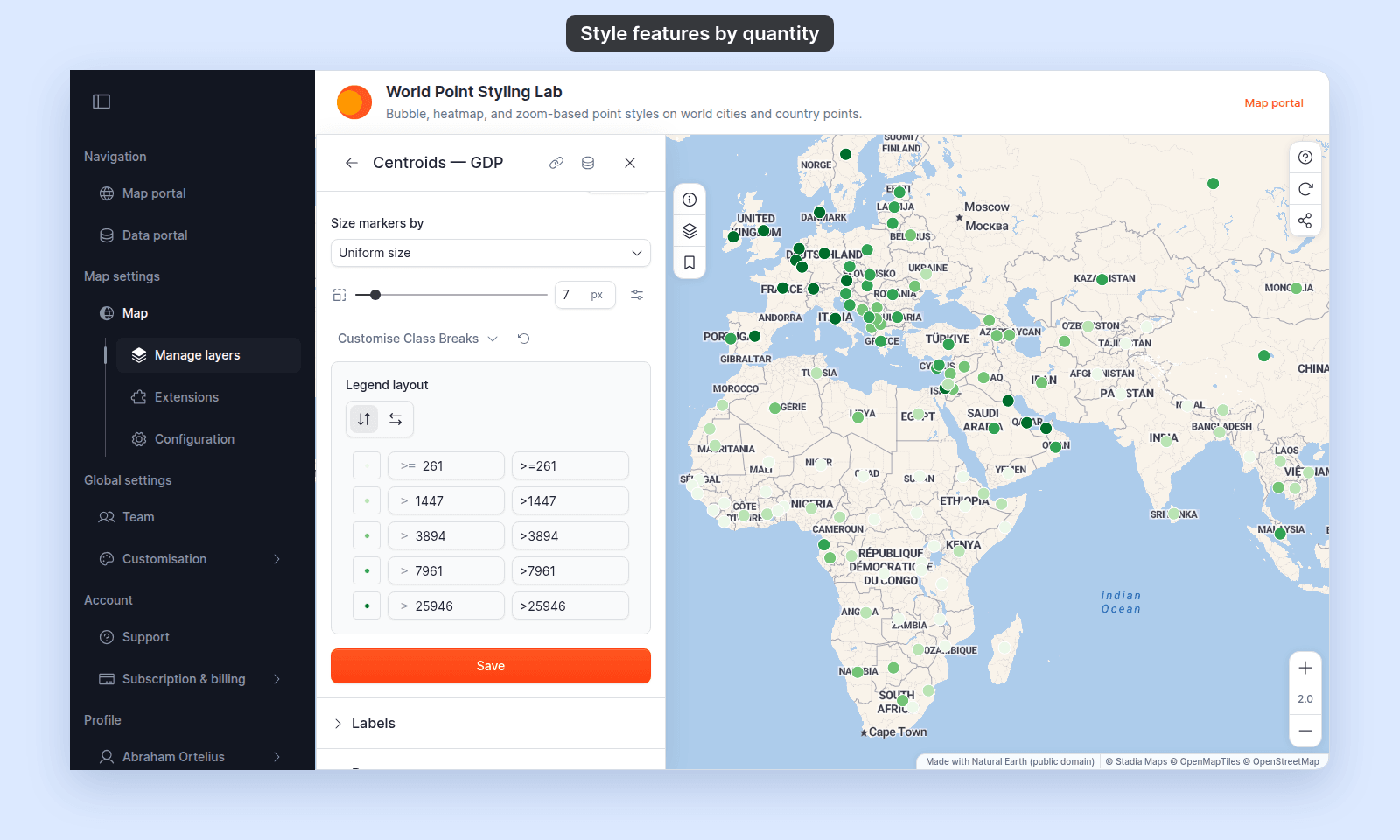

Customise Class Breaks expanded on the Centroids — GDP point layer: Legend layout, then five rows, each with a swatch, a lower bound from >= 261 to > 25946, and a label

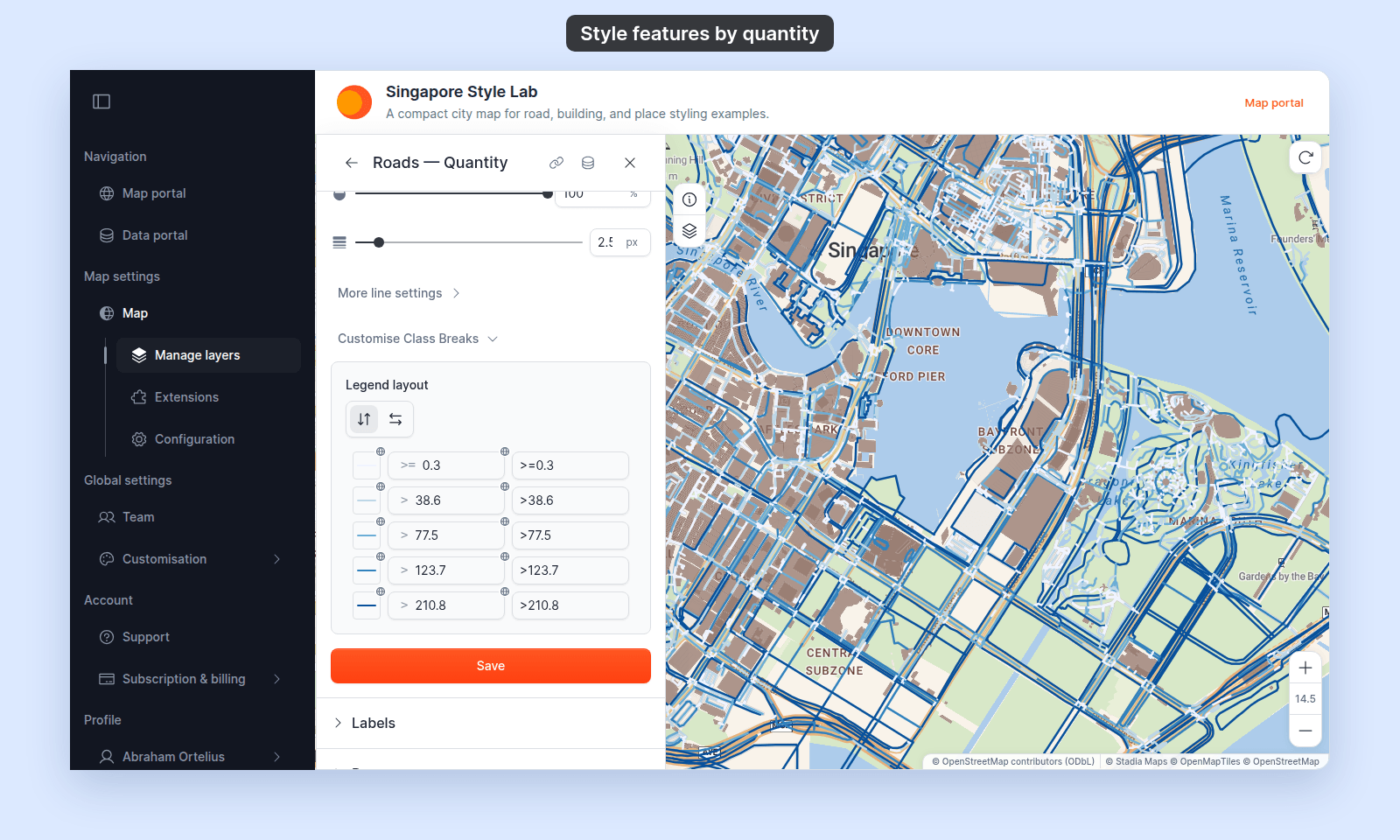

Customise Class Breaks expanded on the Roads — Quantity line layer: Legend layout, then five rows, each with a swatch, a lower bound from >= 0.3 to > 210.8, and a label

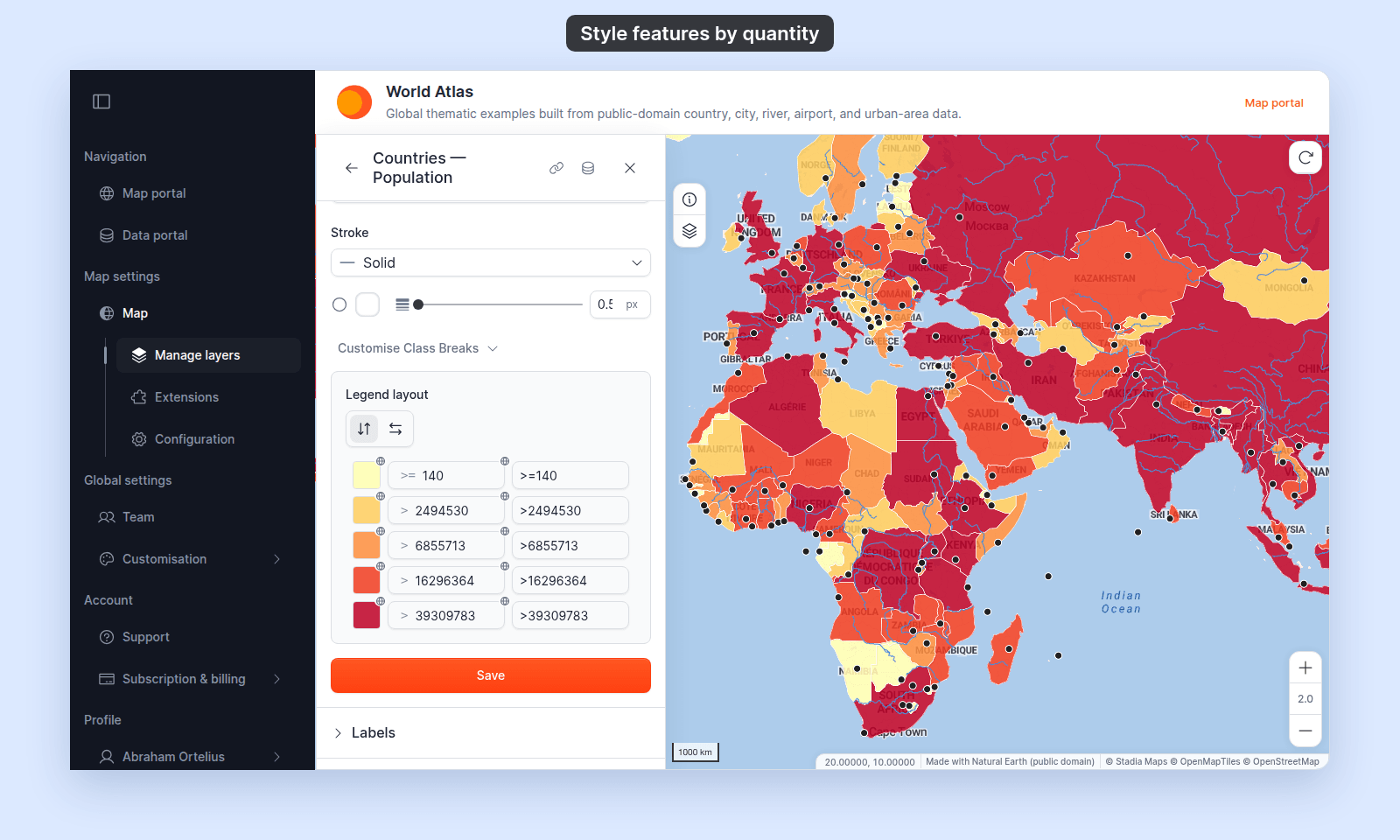

Customise Class Breaks expanded on the Countries — Population polygon layer: Legend layout, then five rows, each with a swatch, a lower bound from >= 140 to > 39309783, and a label

For the customisation flow in detail, see How to customise category and class break symbology.

Save

Click Save at the bottom of the panel. The map redraws with the chosen field, method, and palette, and the legend shows one swatch for each class.

Each class runs from its value up to and including the next class’s value. A value equal to a class’s value belongs to the class below it, so the legend shows >= for the first class and > for the others. The top class has no upper end: every value above its value takes its colour. Features with no value, or a value below the first class, do not draw.

Here is where each value goes, with the population classes of the World Atlas countries:

Which class a value falls inNumber line of 5 population classes with lower bounds 140, 2,494,530, 6,855,713, 16,296,364 and 39,309,783: each class runs up to and including the next value, the top class has no upper end, and values below 140 or with no value are not drawn.5 CLASSES OF COUNTRY POPULATION, NOT TO SCALEnot drawnbelow 140>= 140> 2,494,530> 6,855,713> 16,296,364> 39,309,7831402,494,5306,855,71316,296,36439,309,783no upper endEACH CLASS RUNS UP TO THE NEXT VALUE, THAT VALUE INCLUDED. NO VALUE: NOT DRAWN

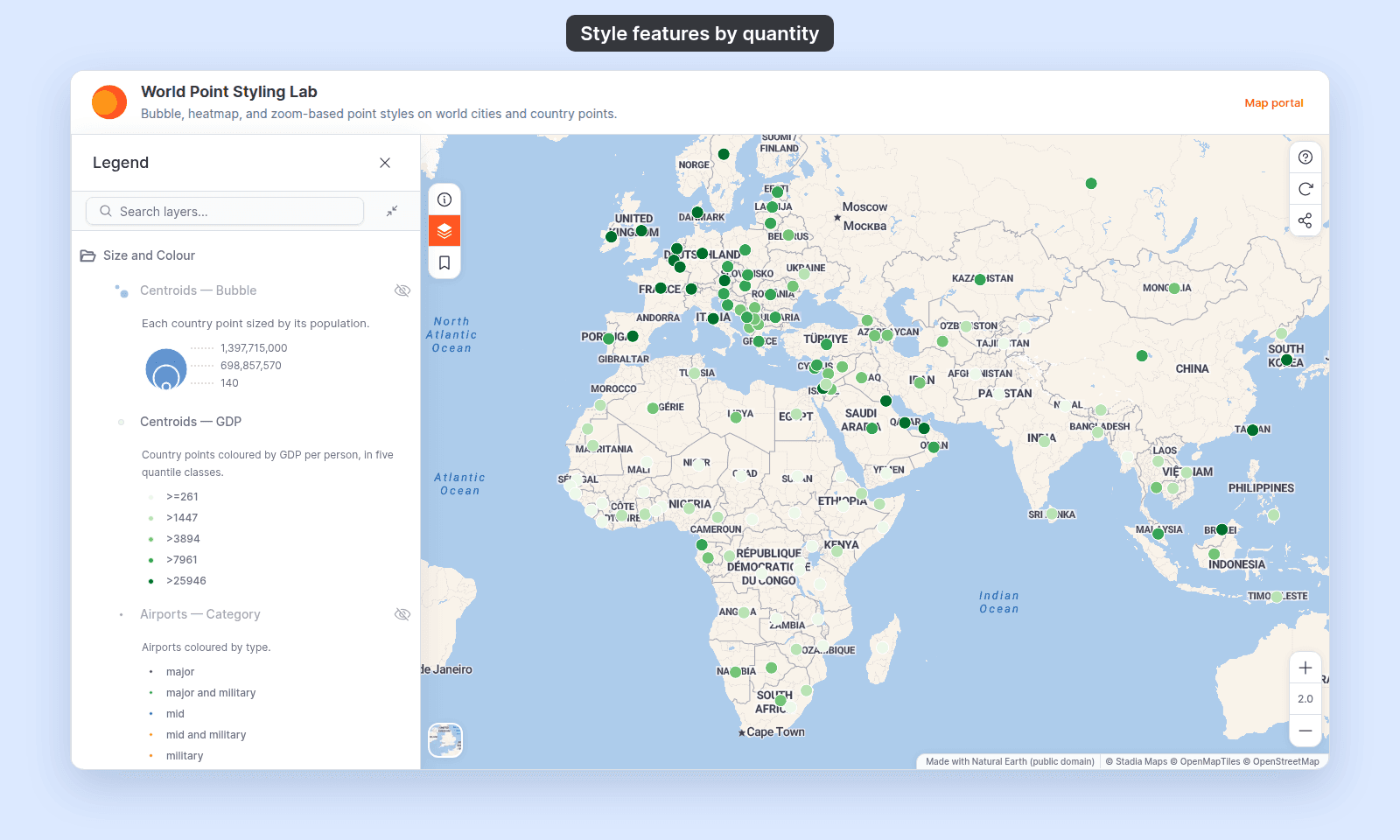

World Point Styling Lab map with country points coloured by GDP per person in five green classes, and the legend listing Centroids — GDP with one swatch per class

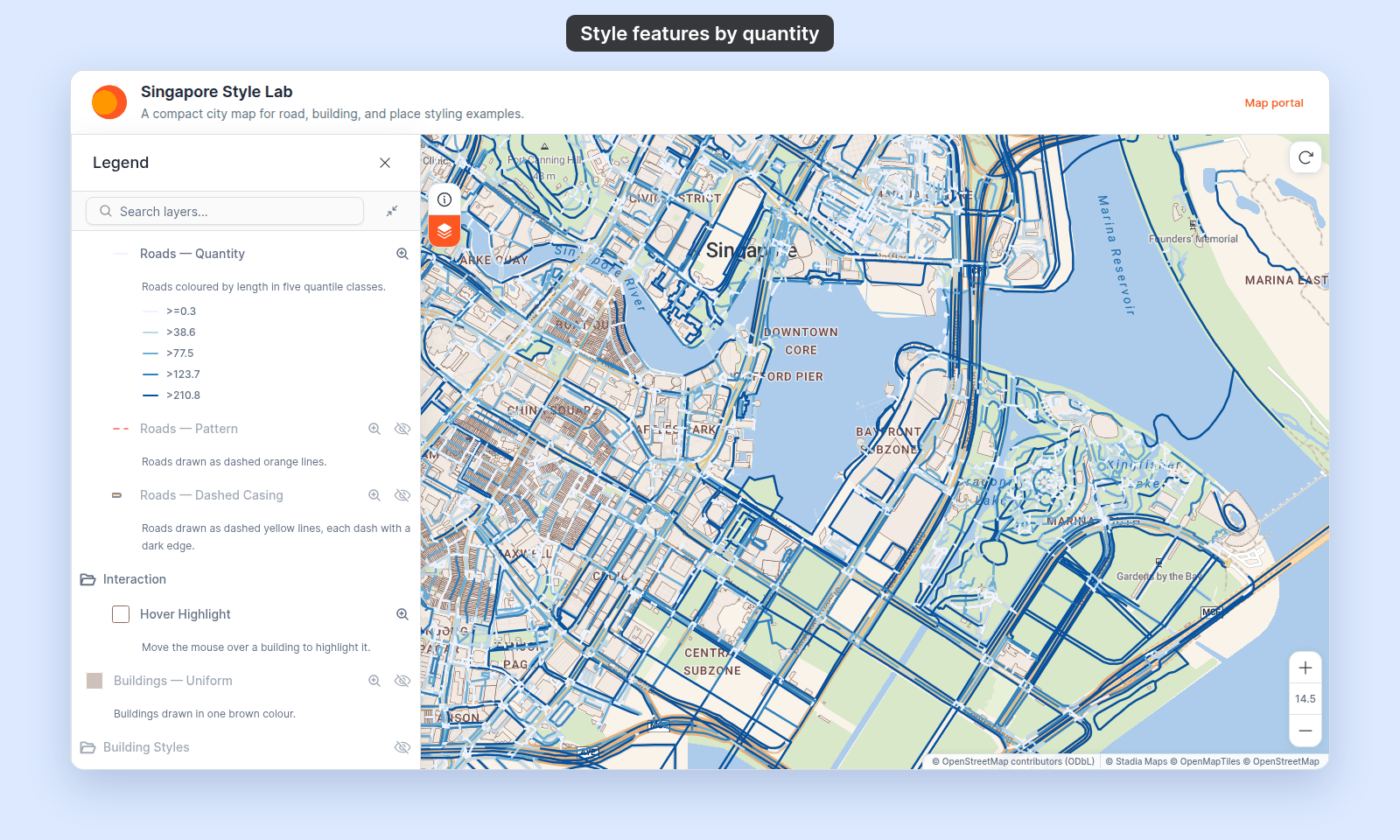

Singapore Style Lab map with roads coloured by length in five blue classes, and the legend listing Roads — Quantity with one swatch per class

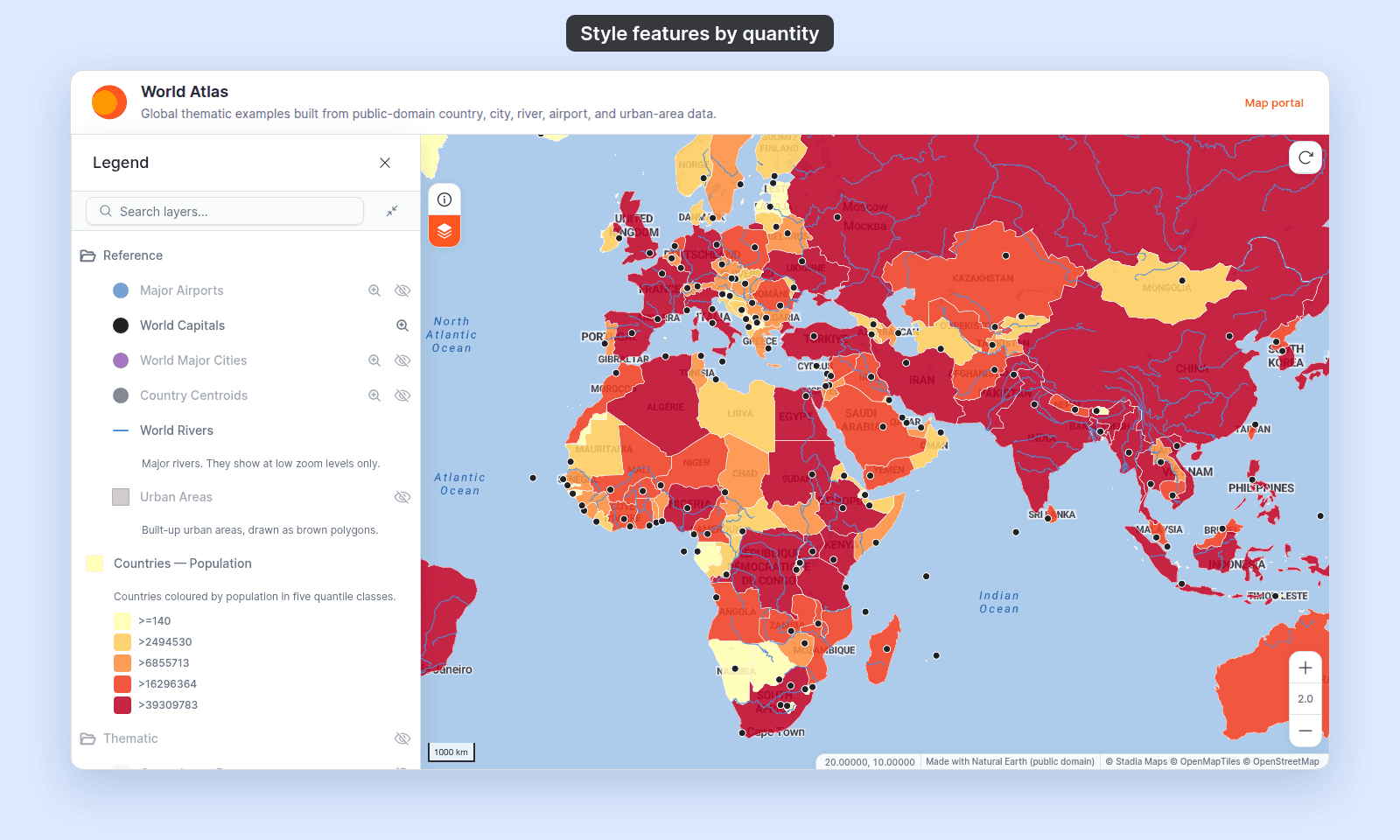

World Atlas map with countries coloured by population in five classes, and the legend listing Countries — Population with one swatch per class

If the breaks fall in awkward numbers

Quantile, Natural Breaks (Jenks), and the head/tail method put class boundaries at values from the data, such as 17.342, not 20. You have two options:

  • Switch to Equal Interval for round-number boundaries. Outliers can then put most features into the lowest class.
  • Keep the method and round each value in Customise Class Breaks.

If you switch Style as between Categories and classes

Each switch builds new rows and removes the customisations of the mode you left. Switching back does not restore them.

Moving from Categories to a class count also resets two settings:

  • The classification method goes back to Natural Breaks (Jenks).
  • The palette goes back to the default ramp.

Troubleshooting

For the most common problems:

The dropdown shows no numeric fields. The layer has no numeric attributes. Import the data again with numeric columns, or use Category styling.

Every value has its own colour, not a class. Style as is set to Categories. Pick a class count or Continuous instead.

I want thicker lines for bigger values. Line width by a field is not available. Colour the lines by the field, and set one width for the whole layer.
